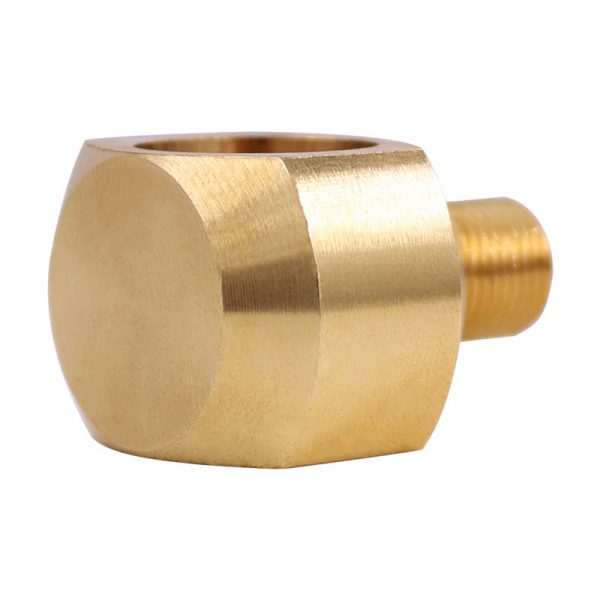

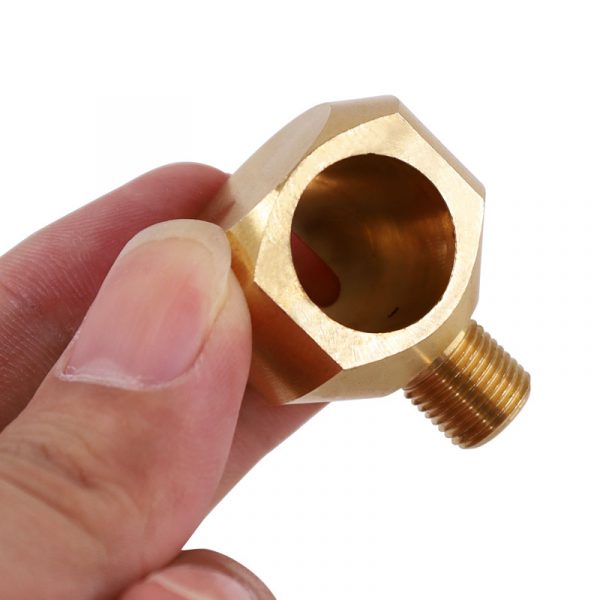

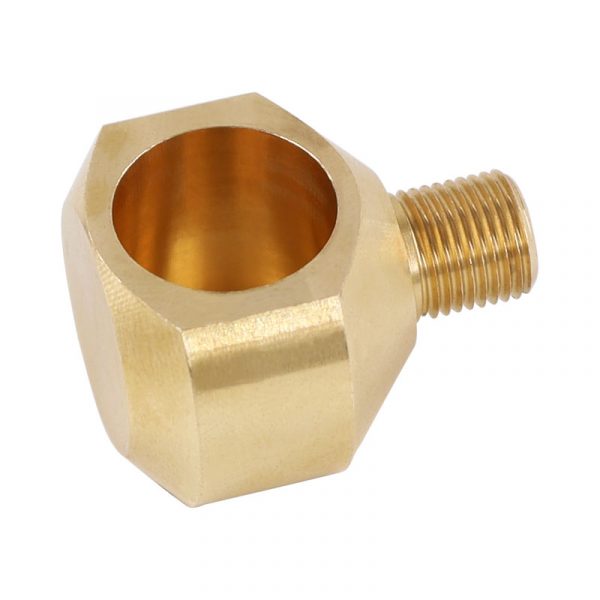

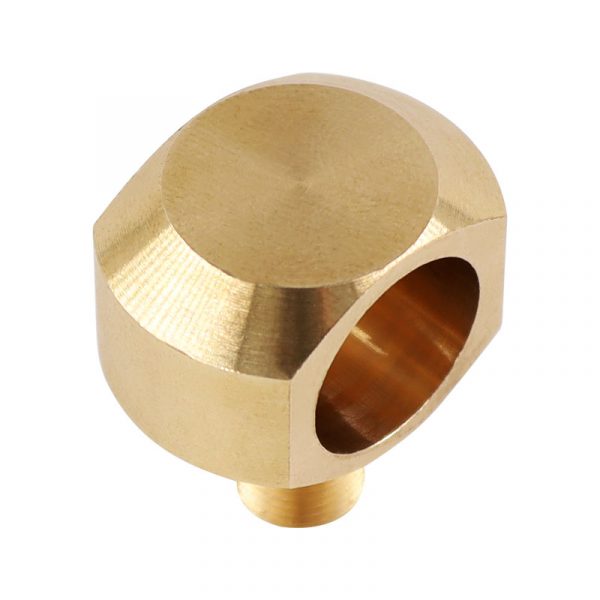

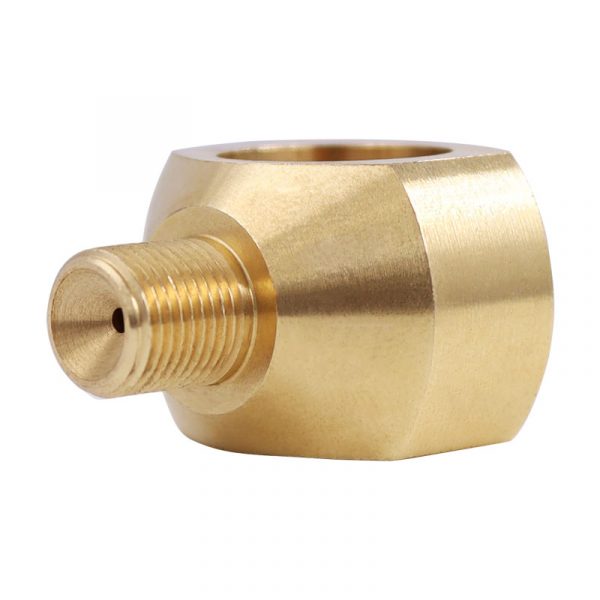

Brass 1/8 BSPP Threaded Connector with Side Hole | High-Pressure Air Fitting

This 1/8 BSPP brass threaded connector with side hole is designed for high-pressure pneumatic and hydraulic systems. Manufactured from high-quality solid brass, it provides excellent corrosion resistance, durability, and leak-proof performance.

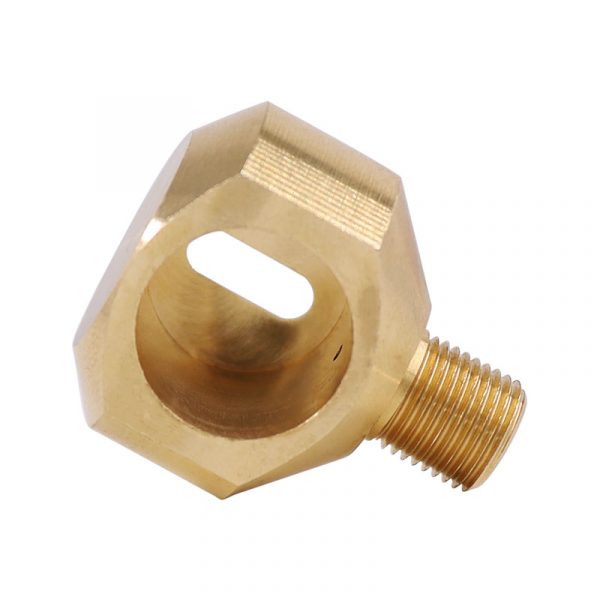

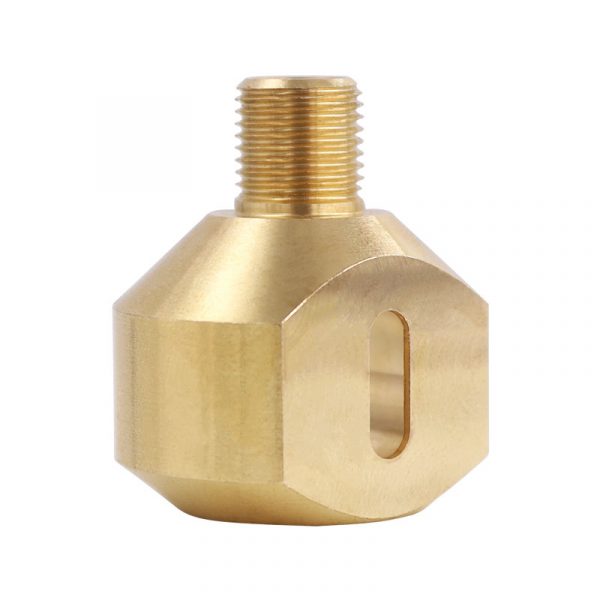

The connector is precision-machined with accurate dimensions for a secure fit. The side hole structure (18.7mm × 4mm slot) allows convenient installation and pressure relief or monitoring applications. Compact and robust, it is widely used in PCP air systems, compressors, paintball equipment, and industrial gas fittings.

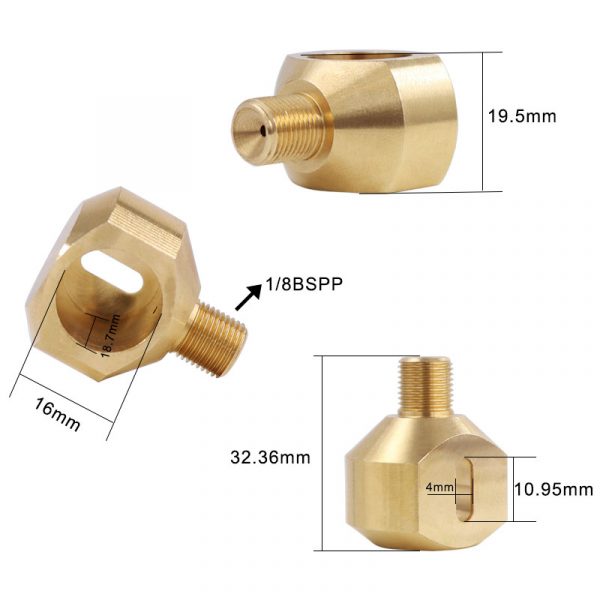

Product Specifications:

• Material: Brass

• Thread Type: 1/8 BSPP (Male)

• Body Diameter: 19.5mm

• Total Length: 32.36mm

• Side Slot Size: 18.7mm × 4mm

• Hex Width: 16mm

• Other Dimension: 10.95mm slot width

• Applications: Pneumatic systems, PCP air tanks, compressors, high-pressure fittings

Key Features:

• Made from durable brass for long-lasting use

• Corrosion and wear resistant

• Precision-machined 1/8 BSPP thread for secure sealing

• Side hole design for easy assembly or monitoring

• Suitable for high-pressure applications
