High-Pressure Regulator – M18x1.5 Inlet, G1/2-14 Outlet, 1800 PSI Fixed Output, Dual Burst Disk (3K & 7.5K) for PCP & Diving Systems

Professional High-Pressure Regulator – M18x1.5 Inlet, G1/2-14 Outlet, 1800 PSI Fixed Output, Dual Burst Disk (3K & 7.5K) for PCP & Diving Systems

This high-performance pressure regulator is designed for safe and reliable reduction of high-pressure air from up to 4500 PSI to a stable 1800 PSI output, ideal for medium-pressure applications such as PCP rifles, CO₂ systems, and industrial tools.

The regulator features a **compact 180° angle design**, where the **pressure gauge and quick connect outlet are positioned at a 180-degree angle**. This design provides better accessibility and ease of use in open environments, while maintaining optimal performance.

It supports **two standard burst disks**:
– **3K (3000 PSI)** – protects the output side from overpressure
– **7.5K (7500 PSI)** – provides ultimate protection on the input side

Key Features
– Maximum Input Pressure: 4500 PSI (300 BAR)
– Fixed Output Pressure: 1800 PSI – non-adjustable, ensures consistent performance

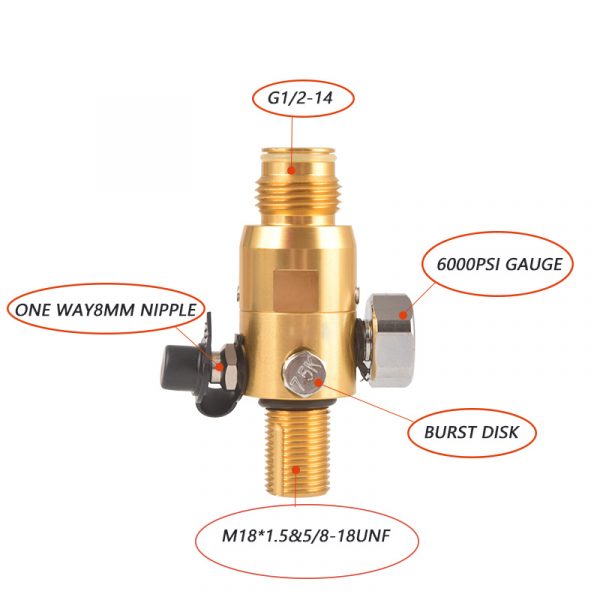

– Inlet Thread: M18×1.5 – standard for carbon fiber tanks
– Outlet Thread: G1/2-14 – standard for filling stations and pneumatic tools
– Safety System: Dual burst disk protection (3K + 7.5K)
– Material: Aluminum alloy – lightweight (200g), durable, and corrosion-resistant
– Dimensions: 94mm height × 27mm diameter
– Package Includes: 1 x Regulator + 1 x Set of Spare O-rings

Typical Applications
– PCP air rifles and hunting systems
– Scuba diving cylinder refill
– CO₂ carbonation systems (Sodastream, soda fountains)
– Industrial pneumatic tools and calibration
– OEM integration in custom gas control units

Why Choose This Regulator?
– 180° angle design improves accessibility and ease of use
– Dual burst disks provide redundant safety
– Fixed 1800 PSI output ensures stable pressure
– Aluminum alloy construction reduces system weight
– Ideal for both commercial dive shops and professional users

Package Includes
– 1 x High-Pressure Regulator
– 1 x Set of Spare O-rings
– 1 x Protective Cap

Need bulk orders or technical support?
Contact us for OEM packaging, private labeling, or integration advice.
